Description
Flexible Various Carton Packaging Sizes

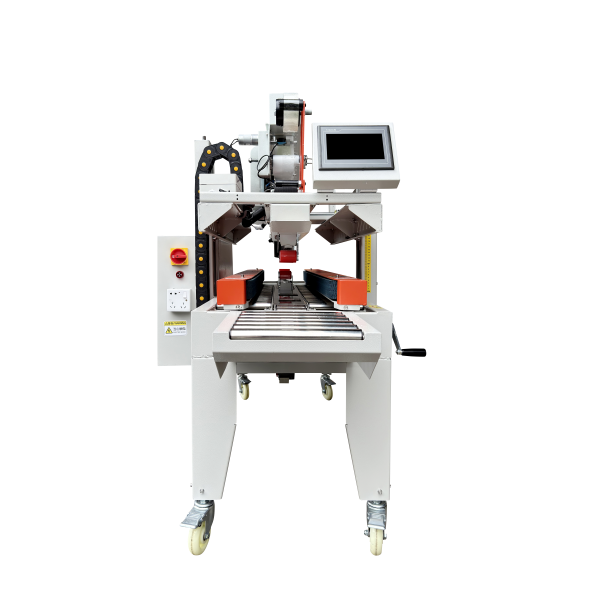

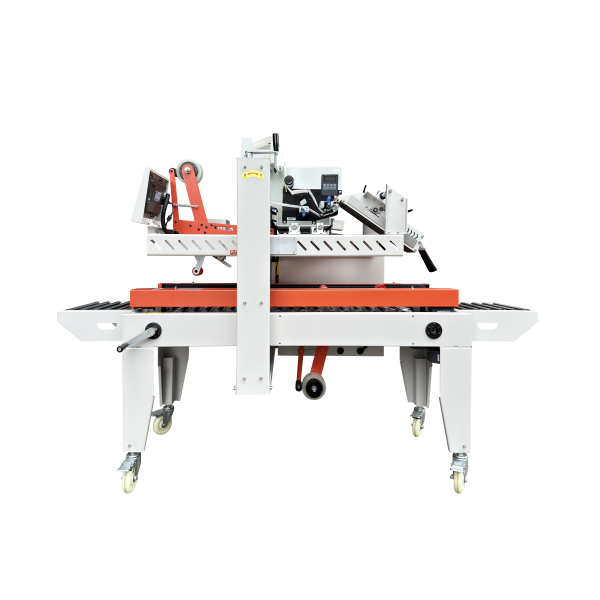

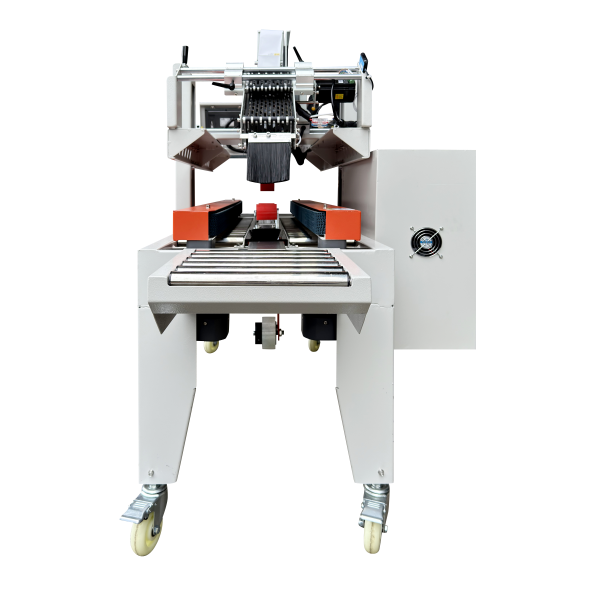

Flexibility is critical for packaging products in cartons of various specifications. Therefore, the QL-FB4030A Case / Carton Sealer is engineered to accommodate various cartons ranging from 3.15″ to 11.81″ in width, 5.12″ to unlimited in length, and 3.54″ to 15.75″ in height.
A Range of Features to Optimize your Carton Packaging Process
The QL-FB4030A Carton Sealer can produce up to 20 perfectly sealed boxes per minute, which is four to five times more than what the average worker can produce. Thanks to the QL-FB4030A’s stainless steel rollers and electric-controlled carton positioning mechanisms, the sealing process runs smoothly and efficiently.
Eliminating error-ridden packaging practices has never been easier, especially since the QL-FB4030A is taking the majority of manual labor out of the equation. Now, all you have to do is load up your formed case and feed it through. The QL-FB4030A is the piece of equipment you need to keep packaging simple.
Versatile Design for a Range of Industries
The QL-FB4030A Case / Carton Sealer works well in a wide variety of carton packaging applications. These include eCommerce order fulfillment, warehousing, logistics, kitting, pharmaceutical, medical device, automotive, food, and more. Contact YPXPACK Machinery today to learn how the QL-FB4030A Carton Sealer can help you improve your carton packaging process.
Specifications
| Model | QL-FB4030A Carton Sealing Machine |
| Speed | Up to 20 boxes/min |
| Box Width | 3.15″ – 11.81″ |
| Box Length | 5.12″ – unlimited |
| Box Height | 3.54″ – 15.75″ |
| Power | 180W |
| Electrical Requirement | 220V, 50/60Hz |
| Dimensions | 78.74″W x 29.53″D x 36.61″H |
| Weight | 508 lbs (230 kg) |
Features
Operating Benefits
- Reduce labor costs with box sealer by eliminating the need for manual taping
- Reduce risk for employee injuries and downtime caused by repetitive motion
- Reduce material waste with a case sealer
- Reduce tape usage by up to 30%
- Improve packing and case-taping efficiency
- Up to 6x faster than manual case sealing
- Case sealing machines can process in 5 minutes what takes 30 minutes manually.
- ROI in less than one year when case sealing more than 250 boxes per day
- Potential to save thousands of dollars every year
- Reduce damage during transit and shipping
- Eliminate uneven tape lengths and positions
Set-Up Benefits
- PLC with job storage, batch counters, packaging statistics, and login-in levels
- Interface to infeed devices for a fully automatic packaging system
Maintenance Benefits
- Off the shelf modular components for easy replacement
- Remote networking capability for improved troubleshooting
- Self-diagnostics ensure quick problem solving
- Quick service access to all electrical components
Safety Benefits
- Low power consumption design (180Watts)
- ISO9001 compliant design for improved safety and troubleshooting
