Description

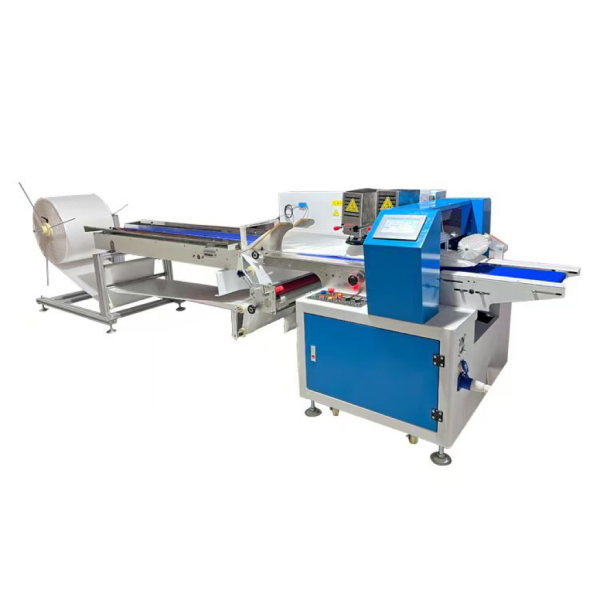

Right-Sized Bubble Film Bagging
Flexibility is critical when packaging softline eCommerce products that don’t require the robustness of a box but still need to arrive in pristine condition — footwear packaged in the retailer’s shoe box, or apparel that can withstand light bumps in transit but must reach the customer looking its best. The YPX-QPD700B1 automatically adjusts bag length and film thickness in real time based on each order’s dimensions, so mixed-SKU orders can run back-to-back without pre-sorting. The bagger accommodates film up to 25.98″ wide, forms bags from 5.91″ to 12.20″ wide with unlimited bag length, and handles products up to 4.72″ in height. Because there’s no fixed bag size to preload and no void filler required, the YPX-QPD700B1 cuts material waste and labor time — helping eCommerce operations hit sustainability targets while keeping per-parcel packaging costs down.

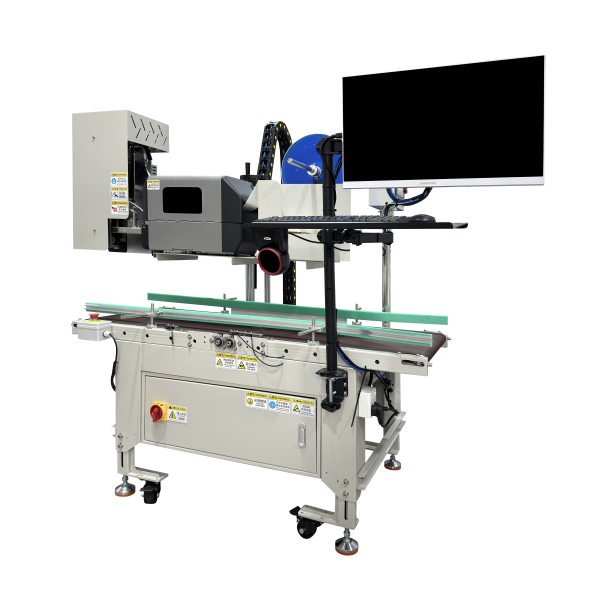

Precision Print & Apply Labeling, Fully Integrated
The YPX-QPD700B1 pairs its bagging system with a fully integrated Shipping Label Applicator sub-module. Seamlessly connecting to your warehouse management system (WMS) and ERP platform, it generates and applies shipping labels in real time — with pinpoint accuracy — directly onto cartons, parcels, and poly mailers in a single automated pass. The tamp applicator uses an optical sensor to detect each box or bag as it’s presented, ensuring labels land in the right spot on every cycle without slowing down the line.
Engineered for Precision and Reliability
Precision matters at every stage of the bagging process. The YPX-QPD700B1 runs on triple-servo control paired with a photoelectric fiber-optic sensor that automatically detects each product — the machine only cycles when product is present and stops automatically when it isn’t, preventing wasted film and empty bags. Independent PID temperature control on the sealing system adapts to a wide range of film materials, while a high-sensitivity color-mark tracking sensor keeps the seal-and-cut position accurate on every cycle. A dedicated discharge brush keeps finished bags aligned, clears debris, and controls static for a clean, smooth outfeed. Built with imported electrical components and a simplified drive system, the YPX-QPD700B1 is engineered to run quietly, reliably, and with minimal upkeep.
Built for High-Volume eCommerce Fulfillment
The YPX-QPD700B1 is purpose-built for eCommerce fulfillment operations shipping apparel, footwear, and other softline products at scale. Its 1.8-meter infeed conveyor gives multiple operators room to load simultaneously, keeping pack rates high even during peak volume. Backed by a 12-month warranty on electrical components, Factory Acceptance Testing (FAT), installation and training videos, and remote technical support, the YPX-QPD700B1 is built to keep your fulfillment line running. Contact YPXPACK Machinery today to learn how the YPX-QPD700B1 can streamline your bubble bag packaging process.
Machine Features in Detail

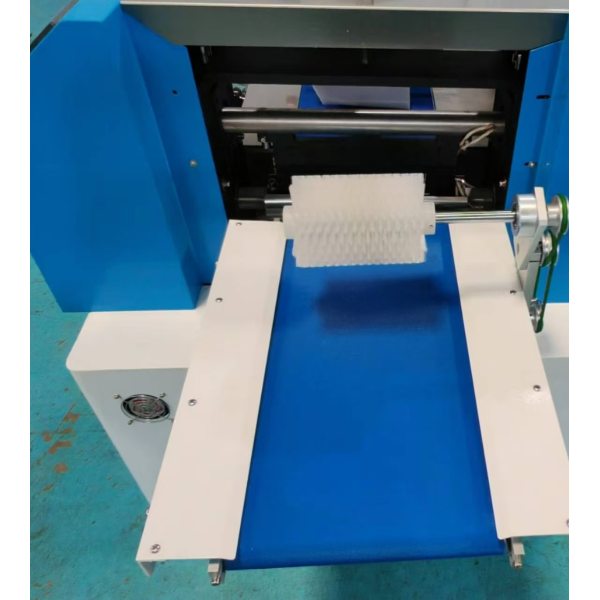

- DISCHARGE BRUSH
Maintains bag alignment, removes debris, and prevents static for a smooth, consistent outfeed.

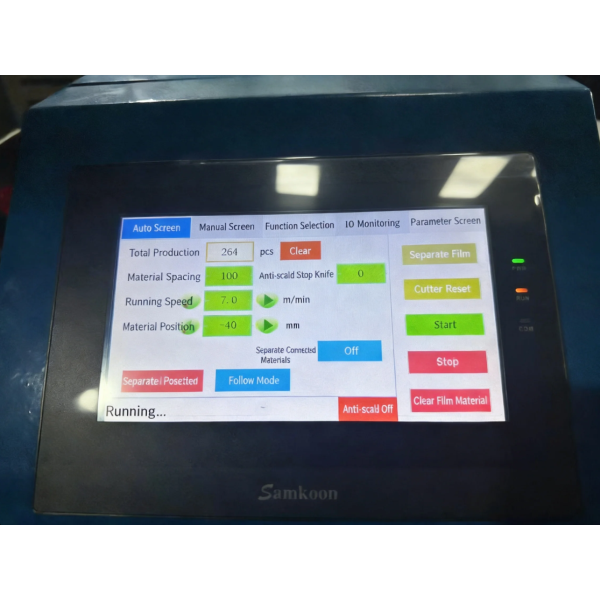

- CONTROL PANEL
Manages machine parameters, monitors running status, and coordinates sealing and feeding actions to ensure stable, precise packaging performance.

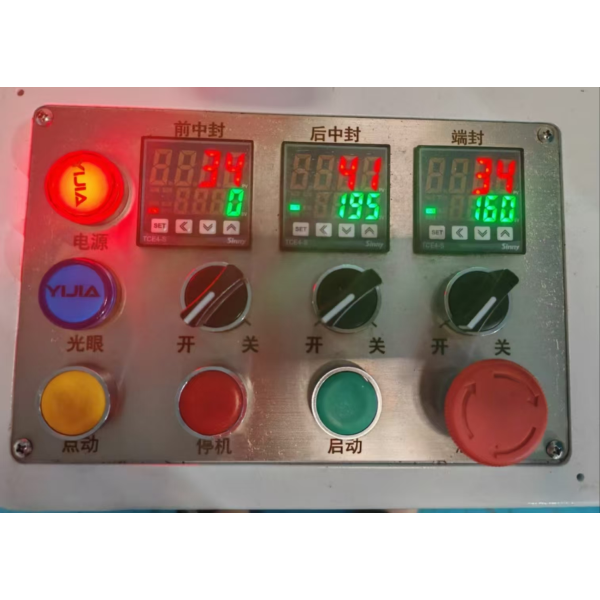

- TRIPLE-ZONE TEMPERATURE CONTROL
Independent PID temperature control across the front-center, rear-center, and end seal zones adapts precisely to a wide range of film materials.

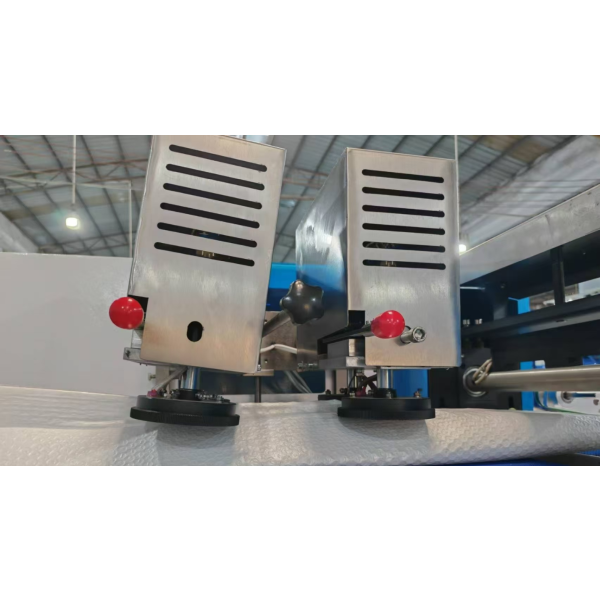

- FORMING & SEALING
Precise forming, sealing, and cutting under servo control — no bag length limit, which widens the range of products this machine can pack.

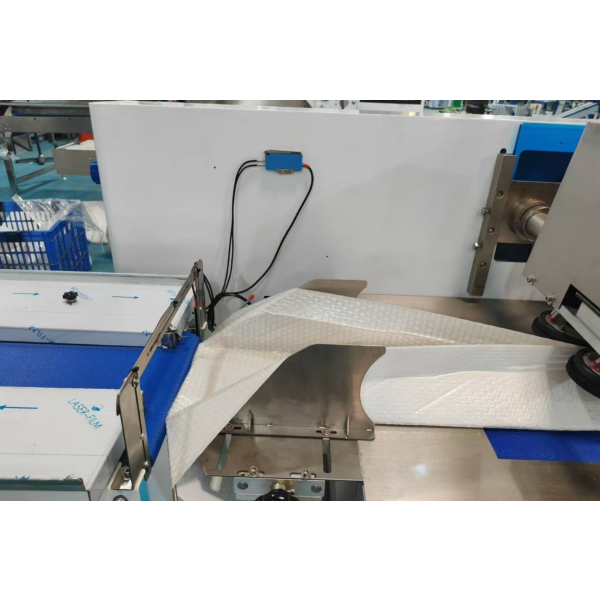

- PHOTOELECTRIC FIBER-OPTIC SENSOR
Infrared through-beam sensing detects each product automatically — the machine packages only when product is present and pauses when it isn’t, automatically spacing products and waiting for the next item. Built-in anti-empty-bag protection prevents wasted bags and film.

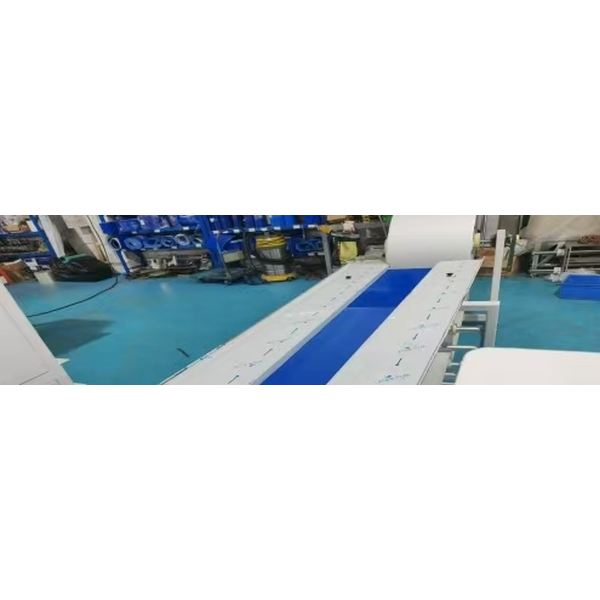

- PRODUCT INFEED CONVEYOR
A 1.8-meter conveyor gives multiple operators room to load product at once, keeping pack rates high and significantly boosting throughput.

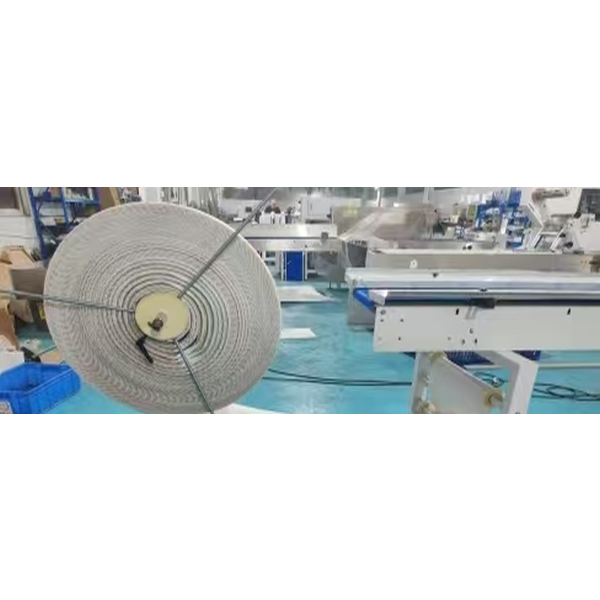

- FILM ROLL SUPPORT STAND
Supports the film supply system by holding the roll securely and enabling controlled rotation for consistent, reliable feeding into the packaging process.
Specifications
| Model | YPX-QPD700B1 Bubble Film Right-Size Auto Bagger with Print & Apply & PC |
| Sub-Module | Bubble Film Auto Bagger |
| Film Width | 3.94″ – 25.98″ |
| Bag Length | Unlimited |
| Bag Width | 1.18″ – 11.02″ |
| Max Product Height | 5.91″ |
| Film Roll Diameter | 47.24″ |
| Packaging Rate | Up to 40 bags/min (varies by product size) |
| Power | 4,200W (rated) |
| Electrical Requirement | 220V, 50/60Hz |
| Machine Dimensions | 216.54″L × 41.34″W × 45.28″H |
| Weight | 1,322.77 lbs (600 kg) |
| Model | YPX-QPD700B1 Bubble Film Right-Size Auto Bagger with Print & Apply & PC |
| Sub-Module | Shipping Label Applicator |
| Speed | Up to 25 boxes/min |
| Power | 180W |
| Electrical Requirement | 220V, 50/60Hz |
| Dimensions | 78.74″W × 29.53″D × 36.61″H |
| Weight | 508 lbs (230 kg) |
Features
Operating Benefits
- Triple-servo control with fiber-optic product sensing — cycles automatically when product is present, stops when it isn’t
- Built-in anti-empty-bag protection prevents wasted film and empty bags
- Independent PID temperature control adapts to a wide range of film materials
- High-sensitivity color-mark tracking ensures accurate seal-and-cut positioning
- 8-meter infeed conveyor supports multiple operators for faster load times
- Integrated print & apply labeling applies shipping labels directly onto bags in a single pass
Set-Up Benefits
- No fixed bag size — length and thickness adjust automatically to each order
- Touchscreen interface with imported electrical components for quick, reliable parameter setup
- Self-diagnostics display faults clearly for fast troubleshooting
- Seamless integration with WMS/ERP systems for real-time label accuracy
Maintenance Benefits
- Simplified drive system for reliable operation and easy upkeep
- No-stick, no-waste positioning stop minimizes film loss at shutdown
- Discharge brush keeps bags aligned and free of static and debris
- Remote technical support available for fast issue resolution
Warranty & Support Benefits
- 12-month warranty on electrical components (wear parts excluded)
- Factory Acceptance Testing (FAT) completed before shipment
- Installation, setup, and training videos provided
- Remote technical consultation available for ongoing support
