Description
Increase Efficiency and Lower Material Costs with this Innovative Auto Bagger

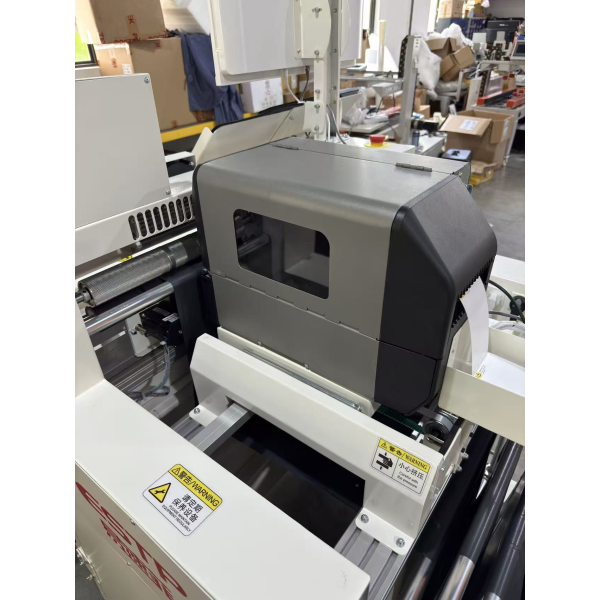

The QL-BD60 Fulfillment automatic bagger is an elite eCommerce order fulfillment bagging system. This automatic bagger works with poly tubing as well as bags on a roll. The benefits of poly tubing include lower material costs as well as right-sizing the bag to the product by changing bag length on the fly, lowering shipping costs, and reducing material usage.The QL-BD60 Fulfillment bagger is equipped with a label printer applicator, to create a fully integrated batch-less order fulfillment bagging solution.

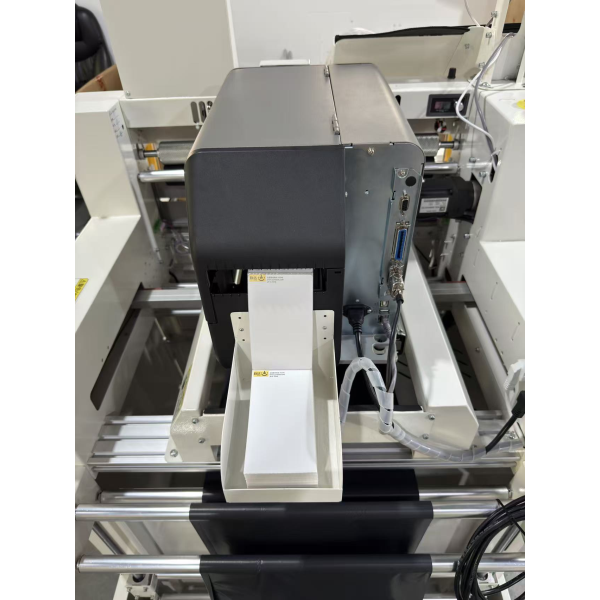

The QL-BD60 Fulfillment can either be equipped with a thermal transfer printer that prints directly on the bag using ribbon. Furthermore, the QL-BD60 is available in a base version that works with pre-made bags on a roll or fan-folded in a box.
This bagger is ideal for e-commerce, order fulfillment and distribution facilities that require the highest level of performance in their order fulfillment packaging operation.
Flexible Poly Bagging
Flexibility is critical for packaging products in poly bags. Therefore, the QL-BD60 automatic bagger is engineered to accommodate roll-fed poly bags ranging from 3″ to 15″ in width, 6″ to 32″ in length. The high-power sealing magnet creates hermetic seals in poly bags up to 4 mil. in thickness. The QL-BD60 automatic poly bagger features a user-friendly touchscreen interface with the capacity to store jobs. Job storage makes product set-up a breeze. Furthermore, the rolls of pre-opened bags are loaded from the front, so access to the back of the machine is not required during regular operation.
A Range of Features to Optimize your Bagging Process
QL-BD60 automatic bagger has a host of standard features—most of which are not available on other all-electric poly baggers. One example is the seal flattener feature where fingers automatically stretch the poly bag tight prior to sealing. This step can minimize wrinkles in the seal.
Engineered with Uptime and Safety in Mind
Safety is a critical consideration in every production environment. With a ISO9001-compliant design, you can be assured that QL-BD60 automatic poly bagger meets the latest safety standard for packaging machinery. Owed to its unique design, the seal bar on the QL-BD60 bagger closes without force, virtually eliminating any chance of injury. The robust QL-BD60 is built to last, however, after years of use components can fail. Therefore, the QL-BD60 has been designed with as many off-the-shelf components as possible. Furthermore, side covers are properly secured with only a handful of screws so they can be removed quickly and easily. The result is that all internal components of the machine can be accessed in minutes.
Versatile Design for a Range of Industries
The QL-BD60 automatic poly bagger works well in a wide variety of poly bagging applications. These include eCommerce order fulfillment, kitting, pharmaceutical, medical device, automotive, food, and more. Contact YPXPACK Machinery today to learn how the QL-BD60 Automatic Bagger can help you improve your poly bagging process.
Specifications
| Model | QL-BD60 Tabletop Bagging Machine |
| Speed | Up to 1200 bags/hour |
| Bag Width | 8″ – 24″ |
| Bag Length | 12″ – 32″ |
| Bag Thickness | 1 – 4 mil |
| Seal Width | 1/8″ |
| Power | 1200W |
| Electrical Requirement | 220V, 50/60Hz |
| Dimensions | 62″W x 34″D x 65″H |
| Weight | 508 lbs (85 kg) |
Features
Operating Benefits
- Operate with a handwitch, by hand, or in auto cycle mode
- Seal flattener fingers minimize wrinkles in the seal area by stretching the bag prior to selling
- Apply a label, up to 4″ in width,directly on the next bag being fed out (optional)
- Compact design takes up minimal footprint in the packaging area
- Color touchscreen with user-friendly interface and clear prompts
Set-Up Benefits

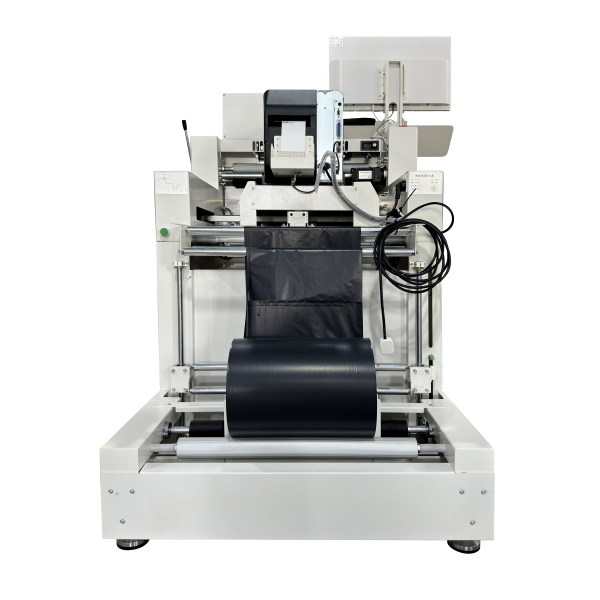

- Utilizes pre-opened bags-on-a-roll for quick bag size changes and easy set-up
- PLC with job storage, batch counters, packaging statistics, and login-in levels
- Interface to infeed devices for a fully automatic packaging system
- Ceramic heating element for fast start-up
Maintenance Benefits
- Off the shelf modular components for easy replacement
- Remote networking capability for improved troubleshooting
- Self-diagnostics ensure quick problem solving
- Quick service access to all electrical components
Safety Benefits
- Zero force seal bar closing virtually eliminates the chance of injury
- A Light Curtain prevents the operation of the bagger when the optical detection field is obstructed. Can also be used to trigger the start of the cycle, once the obstruction is no longer detected
- ISO9001 compliant design for improved safety and troubleshooting
